Multi-tone siren with integrated speaker.

The siren, a sound signaling device, allows to warn professionals of their presence on the roads to facilitate their passage in case of emergency. This signaling equipment for priority general interest vehicles is a combination of a siren integrated with a high-performance loudspeaker, allowing for quick installation without having to couple the siren to a specific loudspeaker.

Presentation of the multi-tone siren with integrated loudspeaker.

This waterproof signaling siren is a compact device with a powerful acoustic performance, suitable for small and medium-sized priority vehicles. In order to increase this signaling to better warn other road users of the presence of professionals in emergency response, it is possible to add a second loudspeaker to this device by connecting it via an external connection.

Characteristics of the multi-tone siren with integrated speaker.

This audible signaling siren has many features of its own:

• Power supply Bitension 12/24 Volts ;
• Maximum power of the device: 30 Watts;
• Speaker frequency: 200 - 1600 Hz;
• Sound intensity: about 110 decibels;
• Average sound distortion: less than 5%;
• Approval: ECE R10;
• Protection class: IP67;

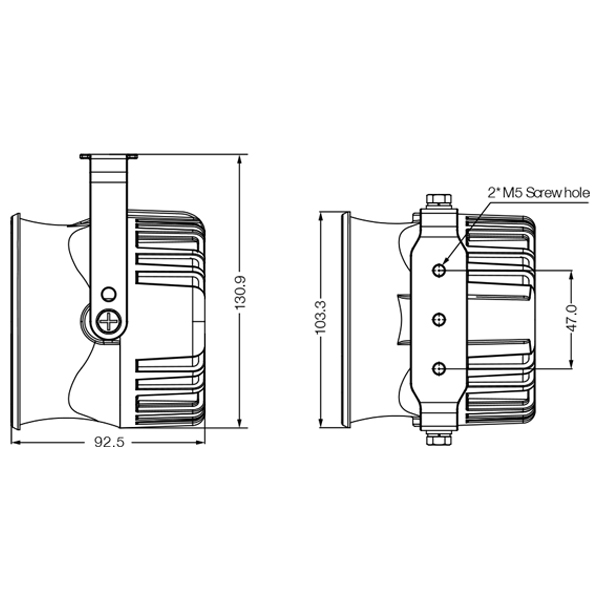

• Dimensions: 103.3 x 103.3 x 92.5 mm ;
• It has an output for a second loudspeaker, for the sound amplifier and for the light controller at the back of the device;

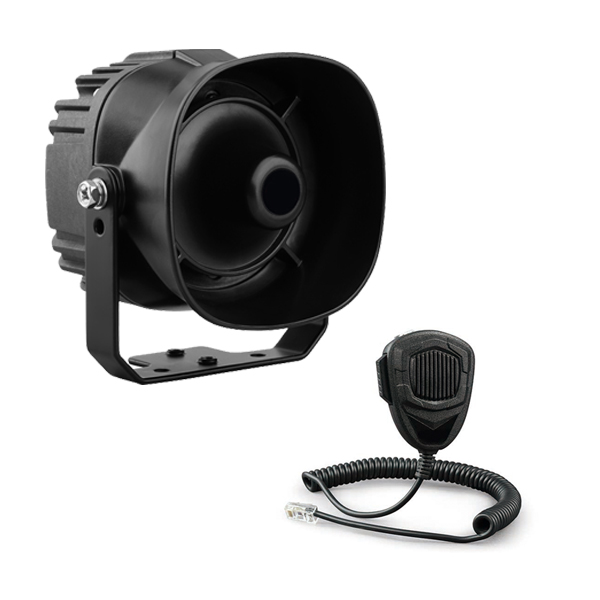

This sound signaling equipment can be optionally coupled with an external microphone and has a support for signal lights of up to 8 Amps that can be synchronized with the siren.

This siren with integrated loudspeaker has a total of 30 pre-programmed tones, 5 of which are approved and certified according to French standards in terms of sound signaling:

1. WAIL ;
2. YELP ;
3. PIERCER ;
4. AIRHORN ;
5. HI/LOW ;
6. Police (China);
7. Ambulance (China) ;
8. Police (France) TP POL 21071 ;
9. Gendarmerie (France) TP GEN 21072 ;
10. Fire department (France) TP SPO 21073 ;
11. SAMU (France) TP UMH 21074 ;
12. Private ambulance (France) TP ASA 21075 ;
13. Ambulance (Italy) ;
14. Police (Italy) ;
15. Fire department (Italy and Czech Republic);
16. YELP *249 ;
17. POWERCALL ;
18. UNITROL-ULTRAHILO ;
19. UNITROL-HERTRO ;
20. Hi/Low 466p ;
21. Horn;
22. Wail (Lower Intensity);
23. Yelp (Lower Intensity);
24. Piercer (lower intensity);
25. Airhorn (lower intensity);
26. Hi/Low (lower intensity);
27. POWERCALL (lower intensity);
28. UNITROL ULTRAHILO (lower intensity) ;
29. UNITROL HERTRO (lower intensity);
30. Manual mode

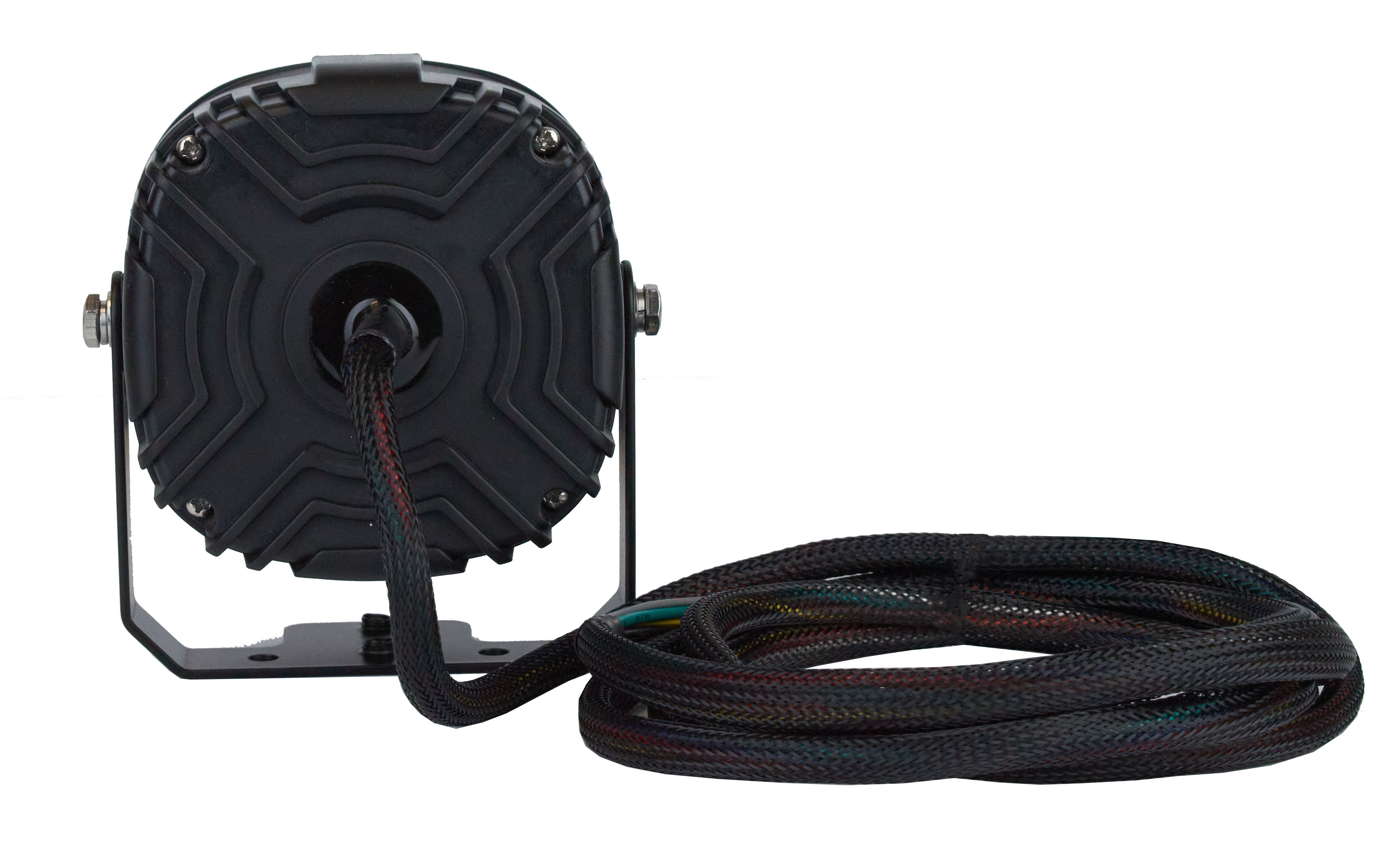

As far as wiring is concerned, this siren with speaker has a large number of connection cables to set up this device:

• Red: (+) 12/24 V ;
• Black: Ground (-) connection;
• Yellow: Tone selection;
• Orange: tone 1 ;
• Purple: Tone 2;
• Grey: volume change ;
• White: sound output (to be connected with an audio cable);
• Green: lights output (to be connected with lights of max 8 Amps on the +);
• Brown : Lights on and off;
• Blue: Night mode;

This audible warning device is easy to fix on your vehicle thanks to a fixing system by 2 M5 screws.

This horn for priority vehicles allows easy passage for many professionals such as firefighters, national police, municipal police, gendarmerie, mobile hospital units and private ambulances.

This approved multi-tone siren is the ideal device for fast and effective sound signaling.

Advantages of the multi-tone siren with integrated speaker.

The main advantage of this sound device is that it is multifunctional. It combines the siren and the loudspeaker in one piece of equipment making it easy to use and very convenient to set up. With its sound power of 110 Db, this loudspeaker with integrated siren can warn people on the roads over very long distances to facilitate the passage of professionals in case of emergencies.
